Opening the range

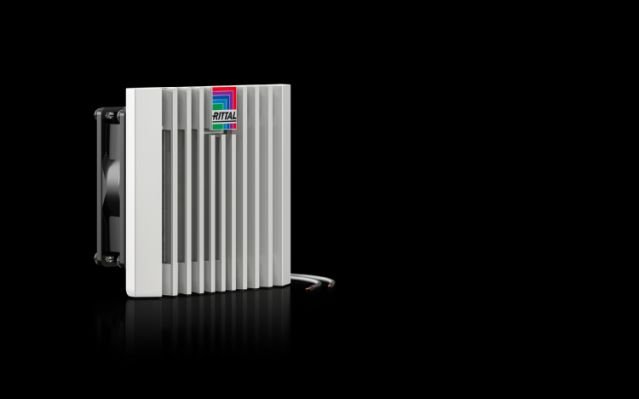

SK 3237.700
Complete fan-and-filter unit for tool-free installation. Diagonal fan technology keeps pressure stability high and air throughput more constant, so heat leaves the enclosure more evenly. Air throughput 20–1,160 m³/h in the range; IP 54 as standard.

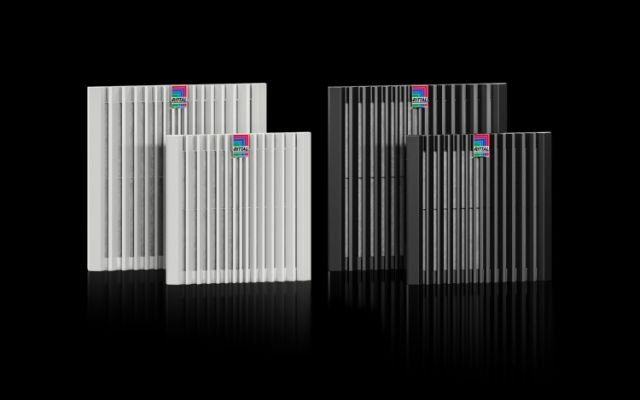

SK 3240.900
Energy-efficient EC fan-and-filter unit with IoT capability. Pleated filter as standard for maximum air throughput. Wide-range 100–240 V for worldwide use. Modbus activation: automatic filter cleaning, filter maintenance display and emergency cooling.

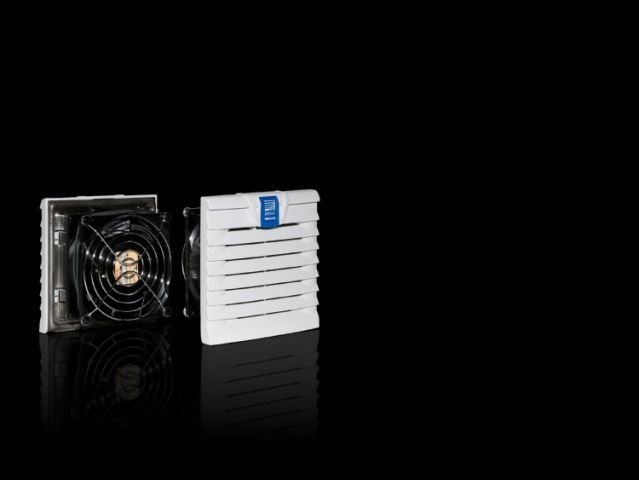

SK 3237.600
Complete fan unit with EMC shielding for tool-free mounting. High shielding and attenuation, requirement category 2 to EN 61587-3. Air throughput 20–900 m³/h in the range; IP 54 as standard.
SK 3138.000
One system for all sizes: a single mounting cut-out covers every output category. Air routing with minimal pressure loss, clamping attachment for IP 54. Install from inside or outside. Supplied without a fan motor, with a pleated filter.

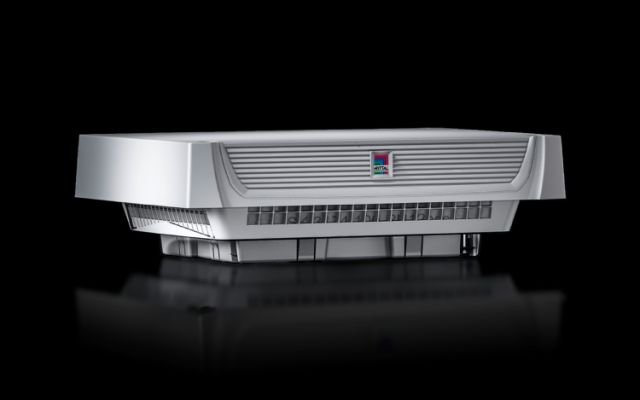

SK 3140.500
EC roof-mounted fan, same one-cut-out system as the vent. Radial EC motor, tacho signal and speed/function monitoring as standard. 976 m³/h with pleated filter, 1,069 m³/h unimpeded.
