MAXIMUS commercial luminaires · Ideal Vision Global Services

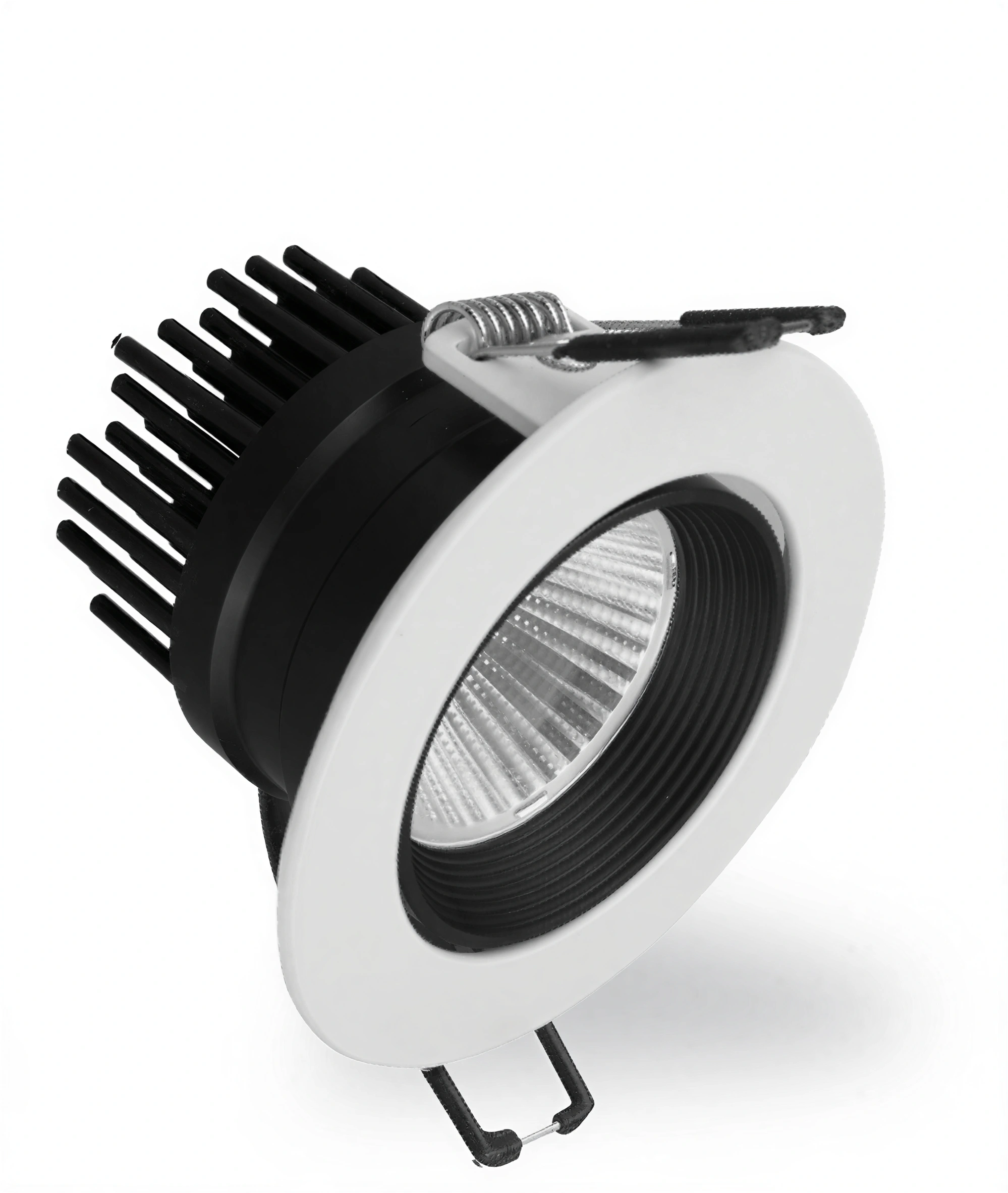

MXLDDL 1051

Adjustable COB downlight

Ideal downlight with a precision reflector. The adjustable mid-ring gives ±30° projection. Heat sink is cold-forged pure aluminium. High-performance COB, CRI Ra > 80.

5 / 7 / 12 WCOB
300–730 lmOutput
15° / 24° / 40°Beam
3000 K / 4000 KRa ≥ 80
Ø 75 mmCut-out
35–50,000 hRated life

Download catalogue

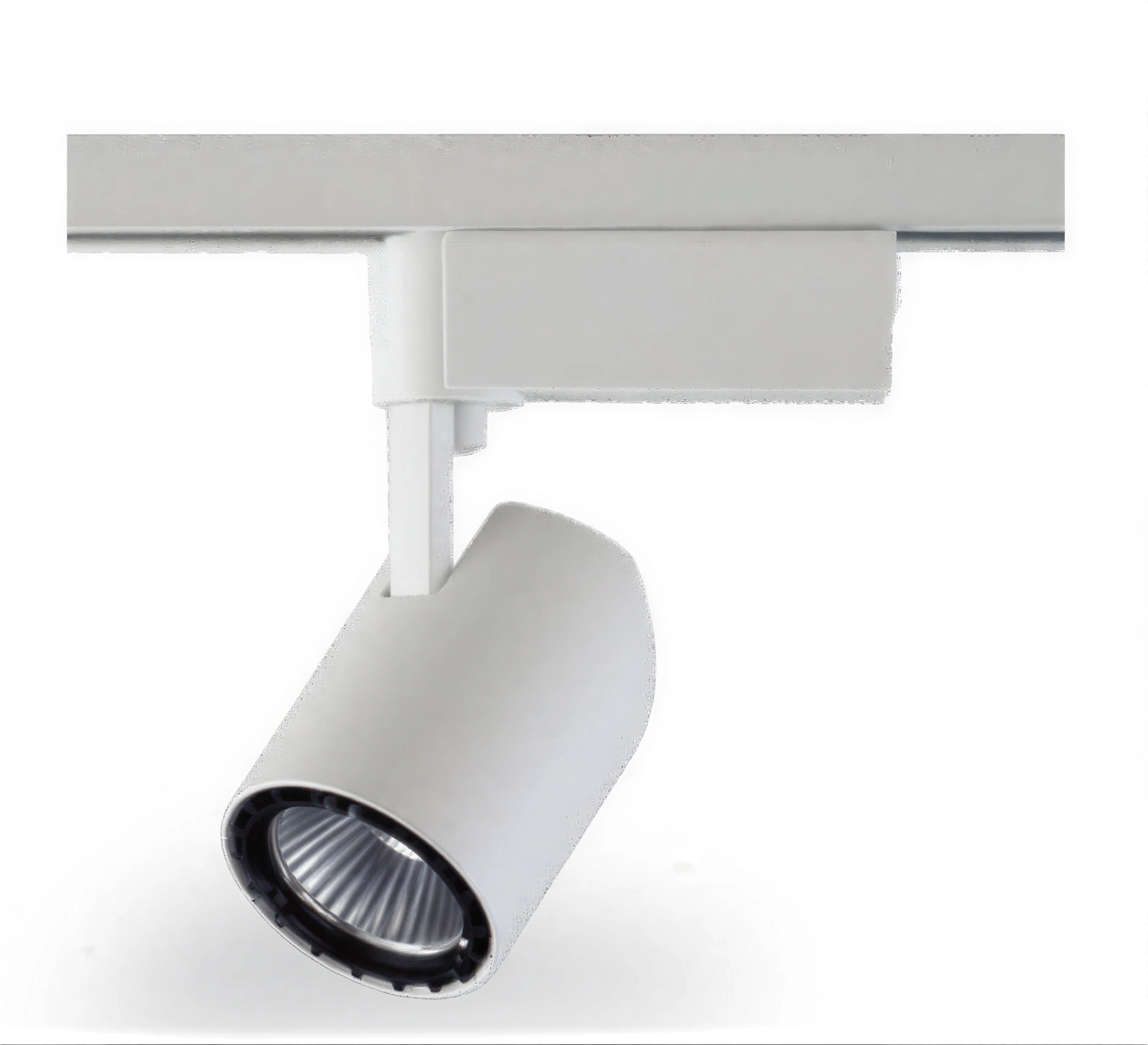

MXLDTRL 01

Track spotlight

Compact architectural track head for malls, department stores, hotels and fashion. PMMA lens with reflector, 90° vertical and 350° horizontal aim. High-performance COB, CRI Ra > 80, in a range of colour temperatures.

7 / 12 WCOB
410 / 730 lmOutput
15° / 24° / 40°Beam
3000 K / 4000 KRa ≥ 80
350° / 90°Pan / tilt
35–50,000 hRated life

Download catalogue

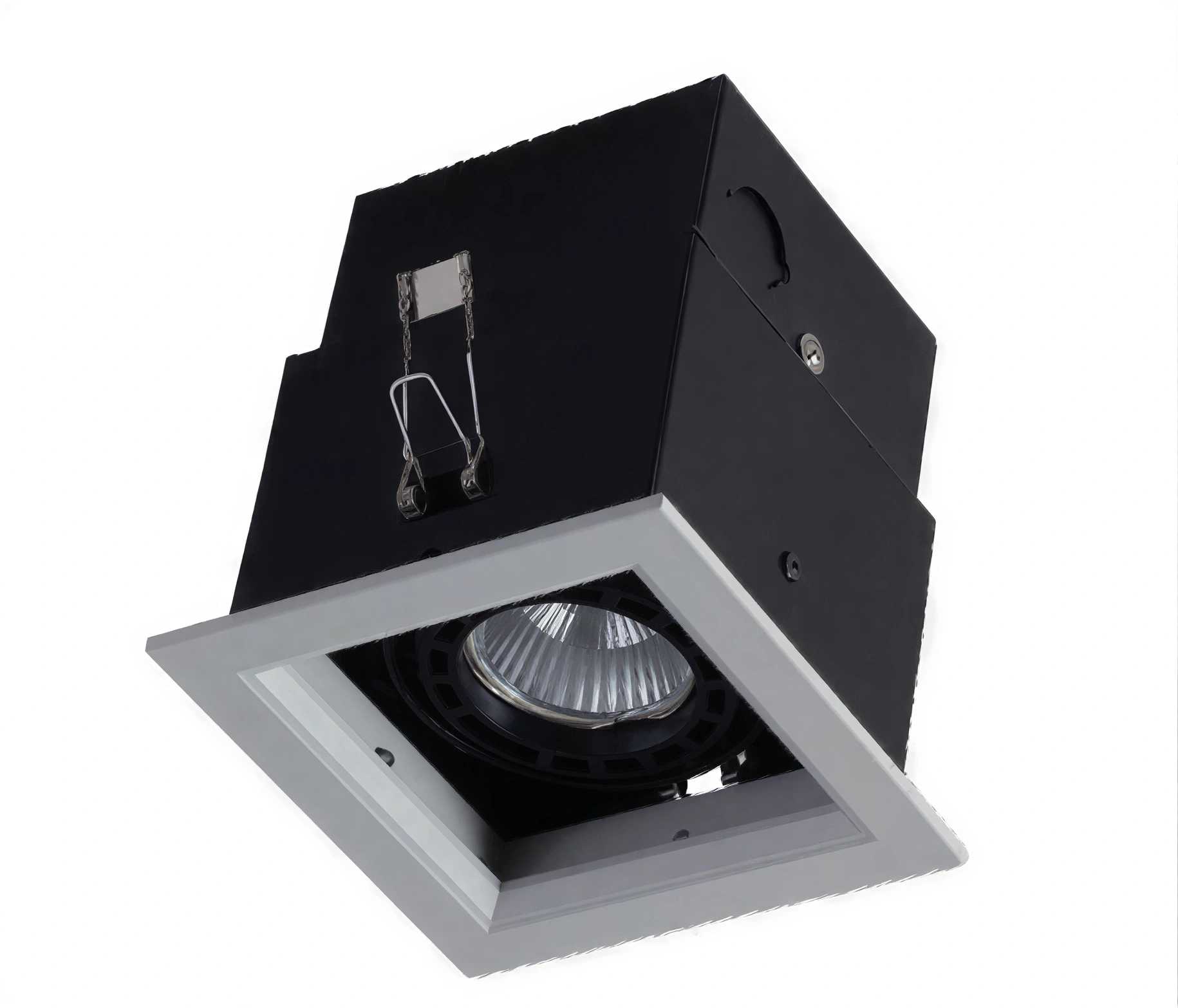

MXLDGRL 01–02

COB gridlight

Integrated gridlight with beam options for general and accent work in retail, hotel and fashion. PMMA lens with reflector, horizontal and vertical tilt. High-performance COB, CRI Ra > 80. Single- and twin-cell versions.

7 / 12 WPer cell
410 / 730 lmPer cell
15° / 24° / 40°Beam
0–60°Tilt
Ø 100 / 100×100 mmCut-out
IP20Indoor

Download catalogue

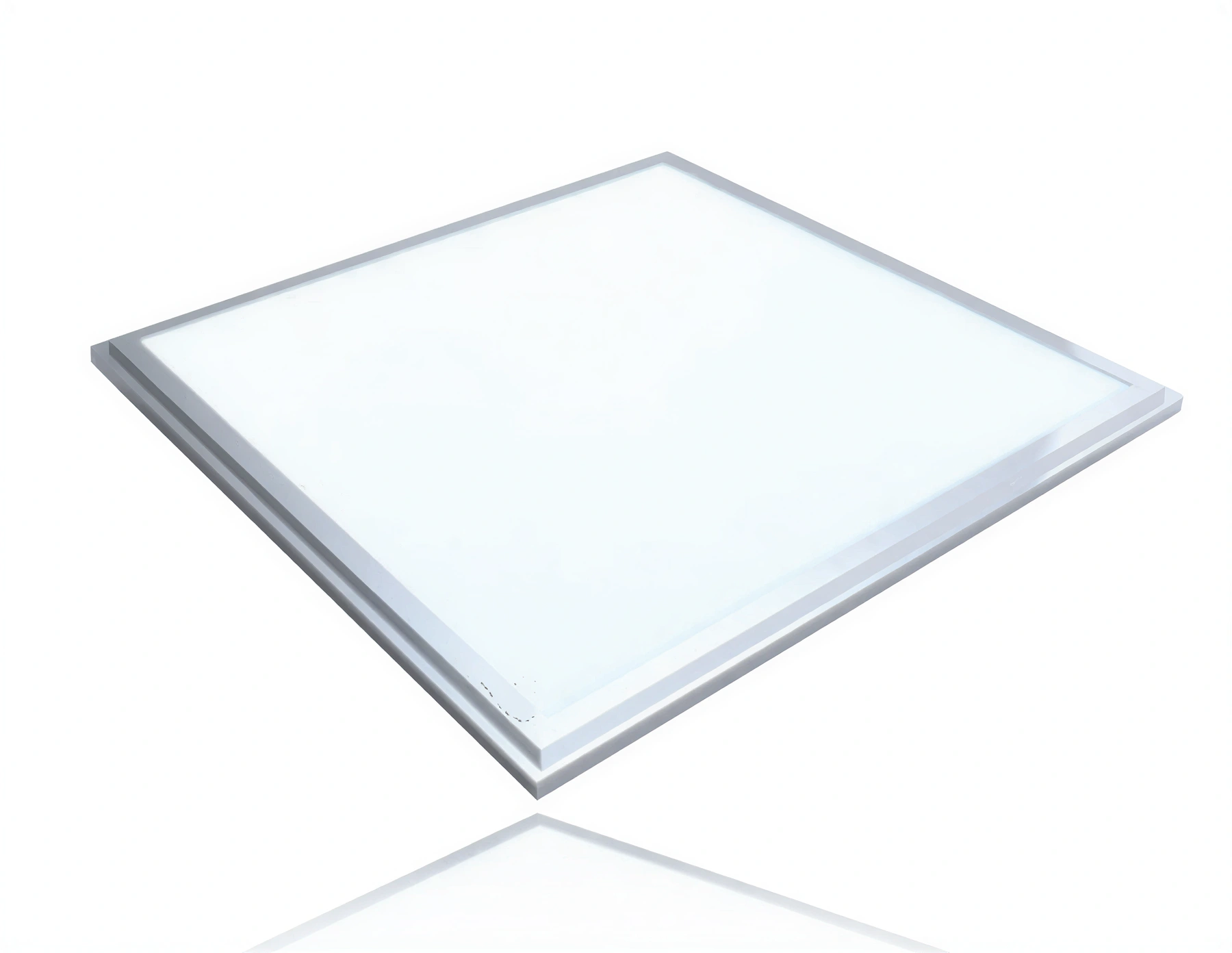

MXLDPL

LED panel

Flat anti-glare panel for malls, offices, hotels and residences. Precision PMMA diffuser and an efficient heat path. High-performance SMD, CRI Ra > 80. Recessed, suspended or surface-mounted in gypsum or metal ceilings. Silver or white.

36–72 W600 × 600
2,300–4,500 lmTypical 600 × 600
120°Beam
2700–6500 KCCT
100–240 V ACInput
> 30,000 hLife

Download catalogue

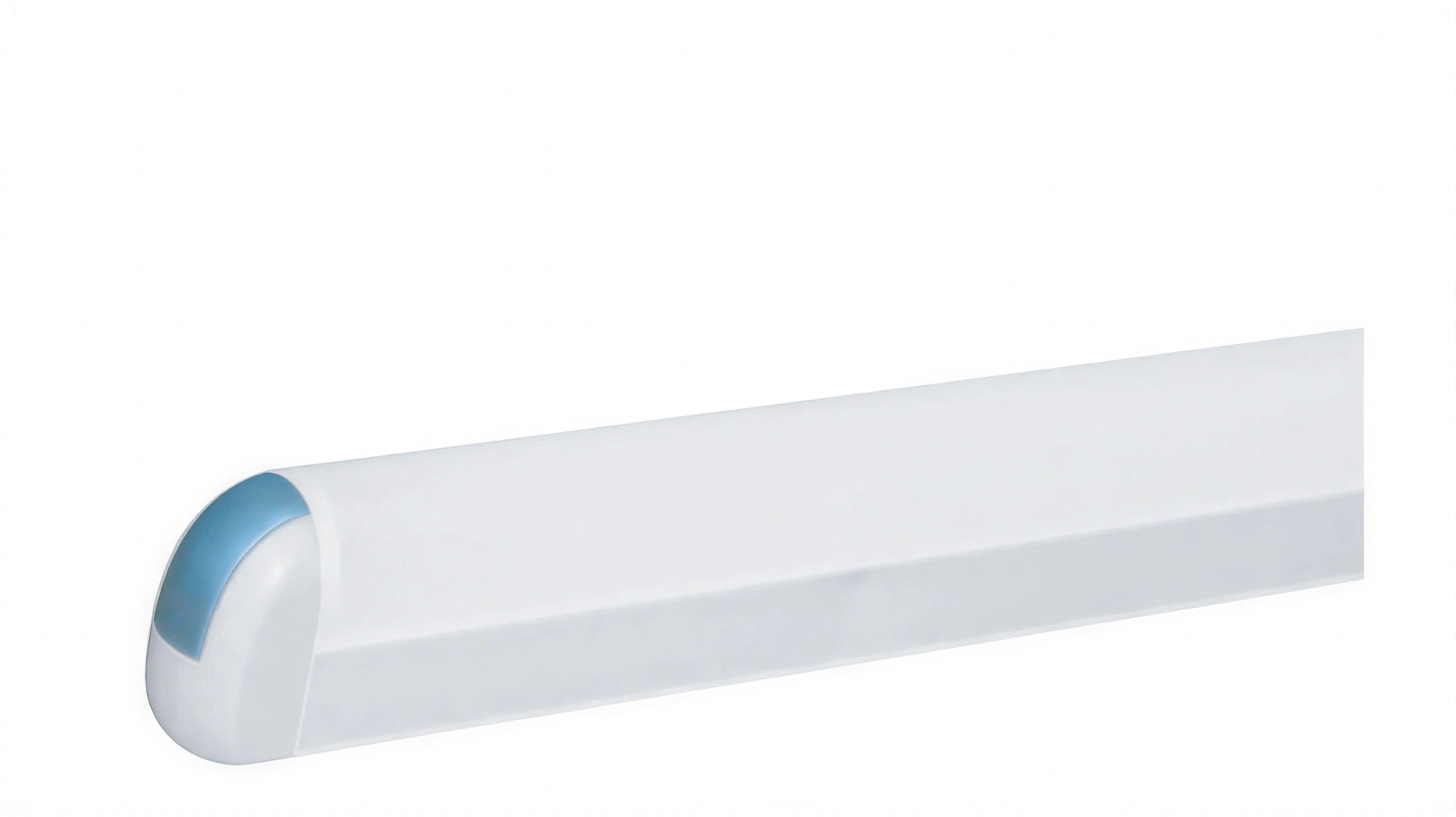

MXLDBL 01

Batten luminaire

Linear anti-glare batten for retail, hotel and residential runs. PMMA diffuser and an efficient heat path. High-performance SMD, CRI Ra ≥ 80. Integrated aluminium housing, 110–240 V.

14 / 24 / 40 WSMD
1,000–3,600 lmOutput
3000–6500 KCCT
PF 0.9Driver
610 / 1220 mmLengths
30,000 hLife

Download catalogue
