Opening the range

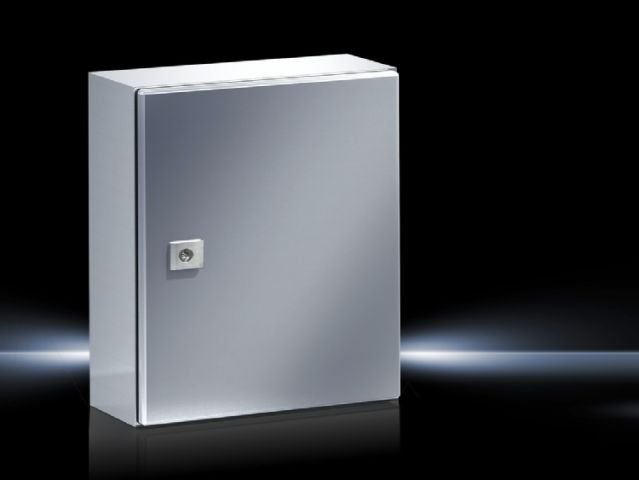

AE 1005.600 compact enclosure AE stainless steel
01 / COMPACT AE

AE 1005.600

Compact enclosure AE

Compact enclosure AE in stainless steel including mounting plate. Folded and welded from a single piece with a protection channel around the door opening. Flush door with all-round foamed-in PU seal, concealed hinges and 130° opening.

  • 300 × 380 × 210 mmW × H × D
  • 1.4301 / AISI 304Stainless steel
  • IP 66 / NEMA 4XIK08
  • 3 mm double-bitCam lock
  • Grain 400Brushed < 0.8 µm
  • 7.7 kgNet weight
Download catalogue

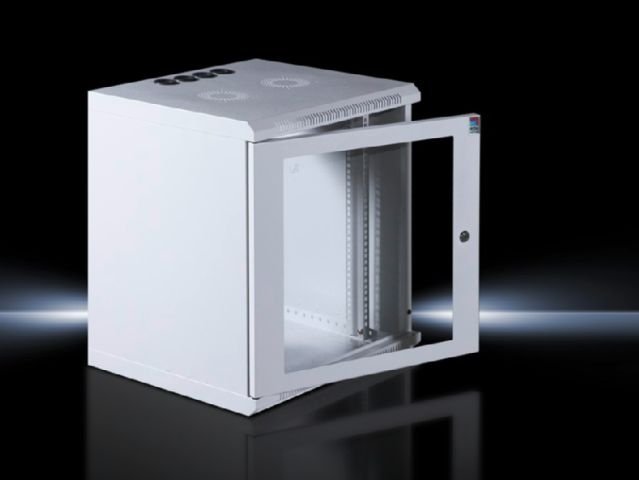

AE 9790.762 wall-mount network enclosure with glazed door
02 / WALL-MOUNT

AE 9790.762

Wall-mount network enclosure

Pre-configured 19" wall-mount enclosure for small networks. Glazed front door, passive vent slots top and bottom, and 482.6 mm (19") mounting angles. Door hinge may be swapped left or right. Fan mounting provision for two fans.

  • 600 × 365 × 500 mmW × H × D
  • 482.6 mm (19")Mounting angles
  • Sheet steelRAL 7035
  • Glazed doorKey lock
  • Ø 50 mm × 4Cable grommets
  • 2 fansMounting provision
Download catalogue

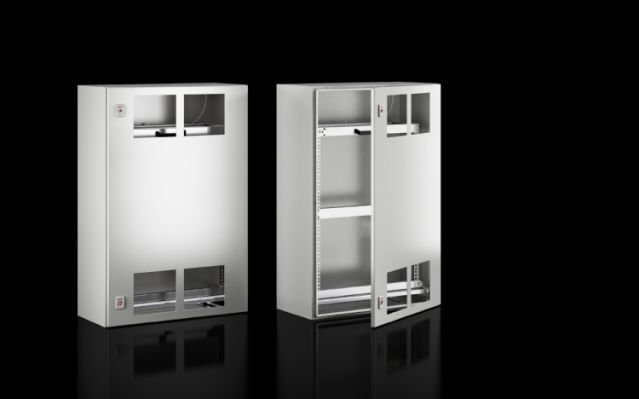

AX IT 7647.400 wall-mounted Nano Data Center enclosure
03 / AX IT

AX IT 7647.400

AX IT Nano Data Center

Designer wall-mounted IT enclosure with a 482.6 mm (19") swing frame for vertical and horizontal mounting. Pre-configured for industrial environments. Compact body, welded structure, interchangeable door hinge. Compatible with the AX wall-mounted enclosure system.

  • 600 × 800 × 400 mmW × H × D
  • 11 U / 4 UVertical / horizontal
  • Sheet steelRAL 7035
  • 19" swing frameFitted
  • 2 × cam lock3 mm double-bit
  • Up to IP 54With filter fan
Download catalogue

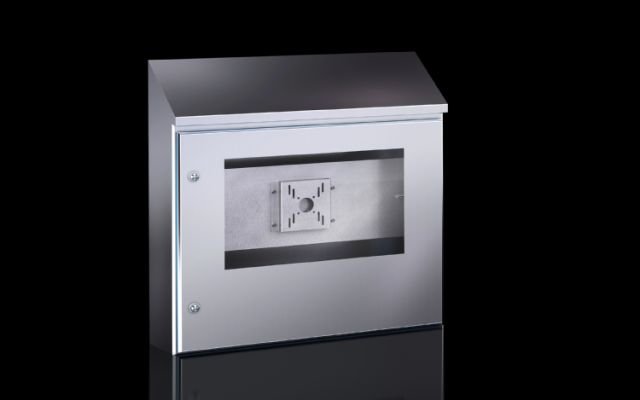

HD 4000.062 hygienic command panel
04 / COMMAND HD

HD 4000.062

Command panel HD

Monitors, PCs and other display components sit hygienically and securely in the command panel. The roof is angled 30° forwards so objects cannot be left on it and liquids run off. Height-adjustable VESA 75/100 holder for screens up to 24".

  • 810 × 692 / 848 × 266 mmW × H front/rear × D
  • 1.4301 / AISI 304Stainless steel
  • NEMA 4XIK08
  • 535 × 325 mmViewing window
  • VESA 75 / 100Up to 24"
  • FDA silicone21 CFR 177.2600
Download catalogue

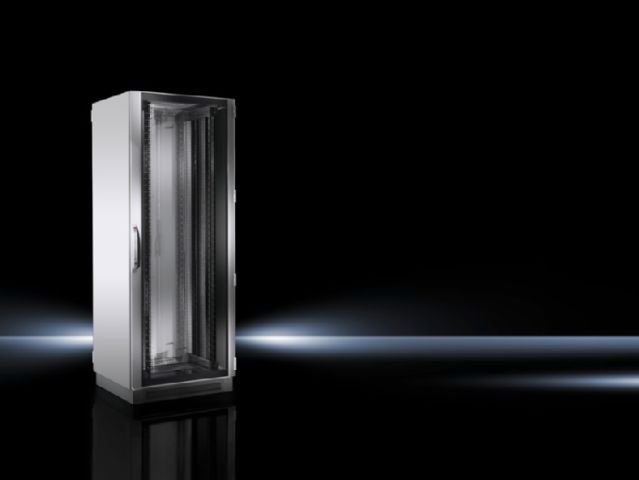

DK 5507.150 TS IT network server enclosure
05 / TS IT

DK 5507.150

TS IT network/server enclosure

TS IT, sealed, for direct enclosure-specific climate control. Supplied pre-assembled with glazed aluminium front door, vertically divided solid rear door, and 482.6 mm (19") mounting angles. Depth-variable interior for a load capacity of up to 1,500 kg.

  • 800 × 2,000 × 800 mmW × H × D
  • 42 UInstallation height
  • 15,000 NLoad capacity
  • 3 mm ESG glassFront door
  • RAL 7035Sheet steel
  • VX 100 mmVented base/plinth
Download catalogue
