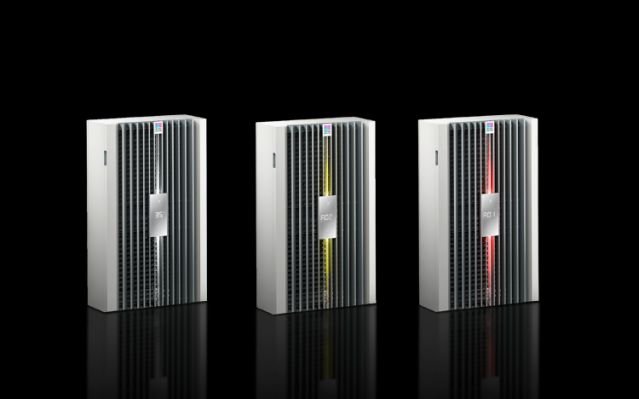

SK 3179.800 Blue e+ S wall-mounted cooling unit
01 / BLUE E+ S

SK 3179.800

Blue e+ S wall-mounted cooling unit

Blue e+ S cooling units with tried-and-tested Blue e+ technology are the world's most energy-efficient cooling units. Average energy savings of 75% and a reduced carbon footprint. Multi-voltage for global use, IoT monitoring, and the Rittal Scan & Service app.

  • 0.52 kWL35 L35 output
  • 110–240 V, 1~50/60 Hz
  • 300 × 570 × 199 mmW × H × D
  • IP 55Internal circuit
  • R-513ARefrigerant
  • 75% savingsEER 1.9
Download catalogue

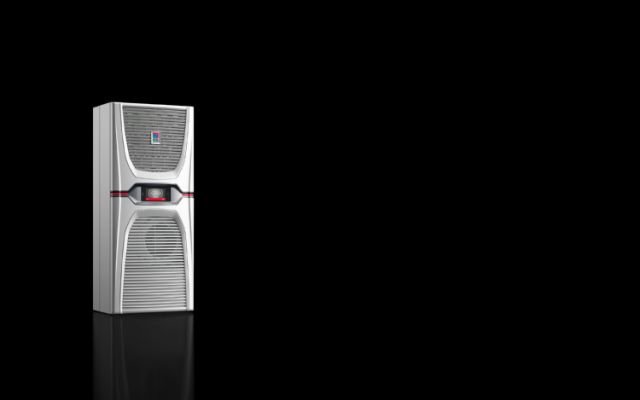

SK 3184.837 Blue e+ Dynamic wall-mounted cooling unit
02 / DYNAMIC

SK 3184.837

Blue e+ Dynamic cooling unit

Designed for dynamic applications. Tested to DNV-CG-0339 for use on board ships — engine-room enclosures — and anywhere vibration is high: ports, cranes, logistics retrieval systems and airport baggage handling. SEER > 6.2.

  • 1.0 kWL35 L35 output
  • 110–240 V / 380–480 V1~ / 3~
  • 400 × 950 × 310 mmW × H × D
  • IP 55Internal circuit
  • DNVMaritime
  • SEER > 6.2EER 3.57
Download catalogue

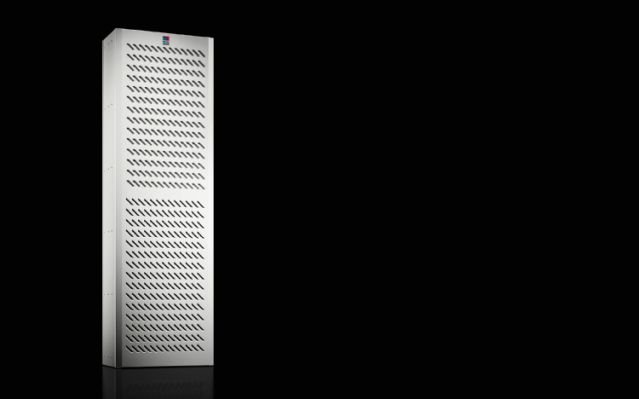

SK 3186.330 Blue e+ outdoor wall-mounted cooling unit
03 / OUTDOOR

SK 3186.330

Blue e+ outdoor cooling unit

Energy-efficient Blue e+ outdoor wall-mounted units from 1.5 kW to 5.0 kW. IP 56 / UL Type 12/3R/4 and −30 °C to 60 °C for challenging sites. External, partial-internal or full-internal mounting — including Toptec project solutions.

  • 2.0 kWL35 L35 output
  • Aluminium AlMg3UV polyester
  • 465 × 1,640 × 260 mmW × H × D
  • IP 56With mounting frame
  • −30 °C…60 °COperating
  • 75% savingsEER 2.86
Download catalogue

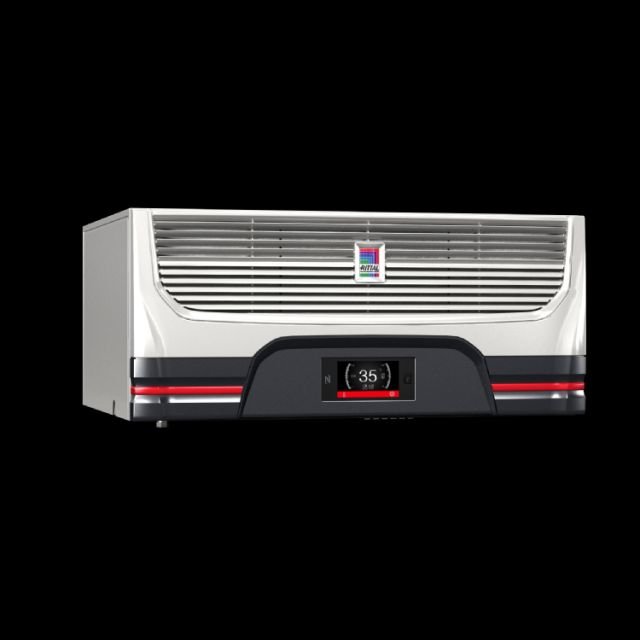

SK 3485.730 Blue e+ roof-mounted cooling unit
04 / ROOF-MOUNTED

SK 3485.730

Blue e+ roof-mounted cooling unit

Hybrid technology with speed-regulated components and a heat pipe. Average 75% energy savings. Unique multi-voltage for worldwide use. Touch display. For enclosures with minimum dimensions 800 × 600 mm (W × D).

  • 1.3 kWL35 L35 output
  • 110–240 V / 380–480 V1~ / 3~
  • 700 × 308 × 560 mmW × H × D
  • IP 54With pleated filter
  • R-1234yfGWP 0.5
  • SEER 4.6EER 1.94
Download catalogue

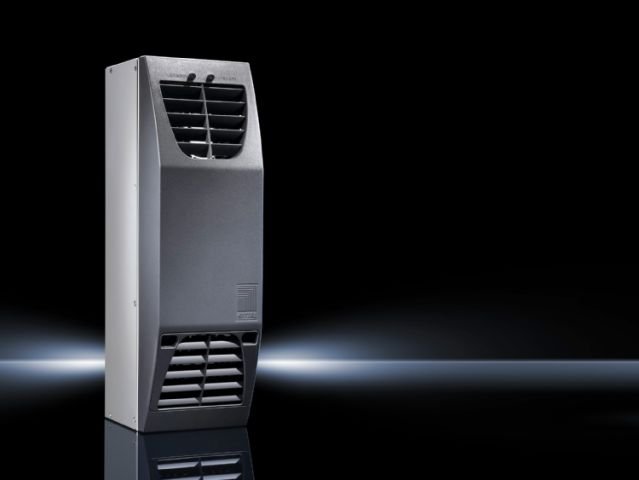

SK 3201.200 thermoelectric cooler
05 / PELTIER

SK 3201.200

Thermoelectric cooler

Powerful, lightweight climate control on Peltier technology for command panels and small enclosures. Cooling and heating output 80/80 W. Anodised aluminium, fully wired, PID control.

  • 80 / 80 WCooling / heating
  • 100–240 V, 1~50/60 Hz
  • 125 × 400 × 155 mmW × H × D
  • IP 54 / IP 34Internal / external
  • −30 °C…55 °COperating
  • 4.05 kgAluminium
Download catalogue
